Generate-silica-itp-file-Gromacs

Silica Model

Description

Here I provide python scripts that creates Gromacs itp files for simulatig α-cristobalite silica surface. The forcefield parameters assigned based on this paper . This repository contains following files:

unitcell.gro: Unitcell of α-cristobalite
modify_silica_gro.py: A python script that takes a .gro file of an α-cristobalite as input and modifies atom names, adds missing surface oxygens and protonates the surface based on an input protonation fraction.
create_itp_silica.py: A python script that takes as input the output of previos script and creates an itp file. The parameters used are those compatible with AMBER forcefield.
Example Gromacs input files to simulate silica-water interface.

Requirements

Python >3.8, MDAnalysis, Numpy and Gromacs.

Getting Started

The following commands assume that you have the first three files mentioned in the description in the present working directory.

Use the Gromacs genconf command to create an α-cristobalite crystal of required size.
```
  gmx genconf -f unitcell.gro -nbox 11 5 8 -o lattice.gro
```

Figure 1: α-cristobalite Unitcell

Rotate the above crystal to expose the 100 plane normal to the z-direction. To do so, note the box dimensions from the above output file lattice.gro. Lets say the dimensions are ` bx, by and bz`,
```
  gmx editconf -f lattice.gro -rotate 90 0 0 -c -box bx bz 7 -o box.gro
```

Where, the box dimension is 7 nm in z-direction.

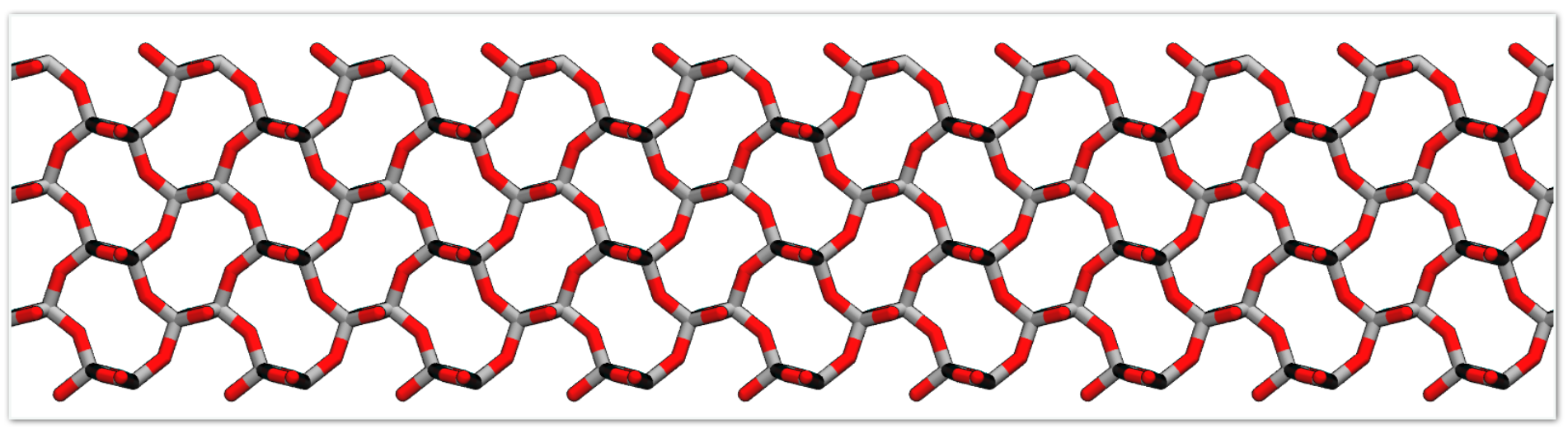

Figure 2: α-cristobalite lattice with 100 plane exposed to z-direction. Note that some surface silicon has oxygens missing.

Modify the above output file box.gro to add missing surface oxygen, change atom names and to protonate random fraction of surface oxygens.

  python modify_silica_gro.py -f box.gro -o final_silica.gro -hf 91  Where, `-hf` flag protonates certian percentage of surface oxygen. Here, 91 % of surface oxygen is protonated

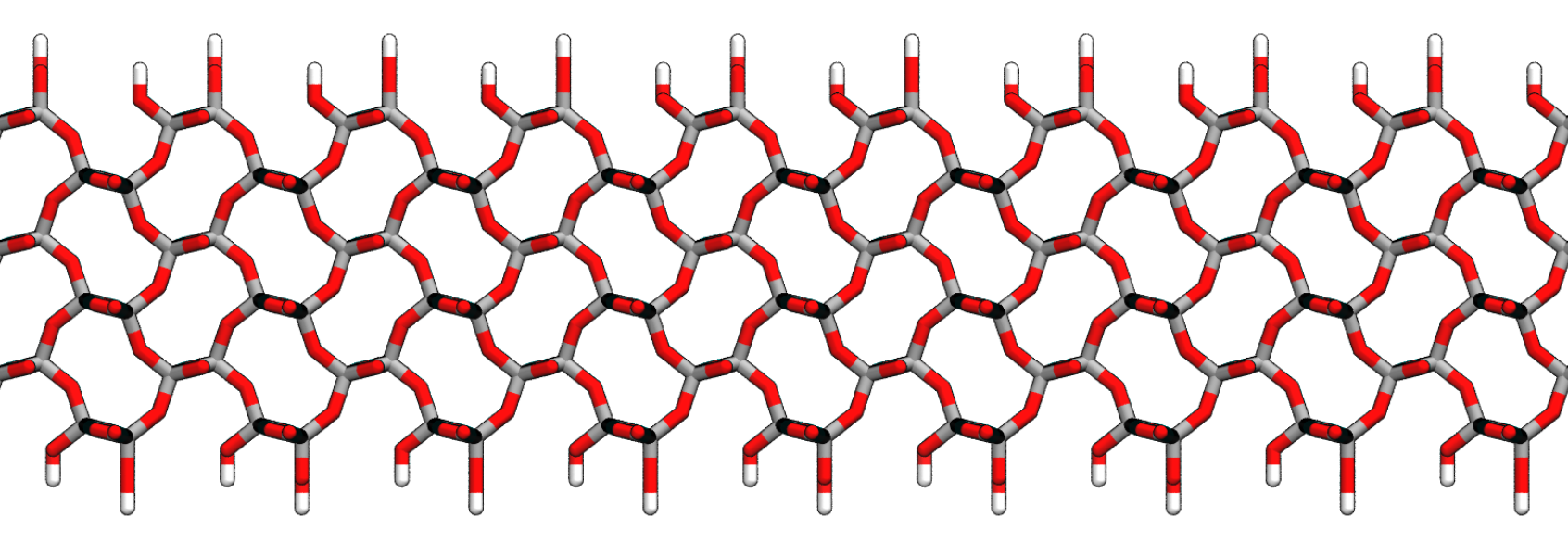

Figure 3: Final α-cristobalite lattice with 100 plane exposed to z-direction. Missing surface oxygens added and a fracton of surface oxygens are protonated. The top and bottom surfaces are protonated by same fraction.

Finally, create an itp file for the above setup.

  python create_itp_silica.py -f final_silica.gro -o silica.itp
